Automatic Gate Repair Cost: Transparent Pricing Guide

A typical automatic gate repair cost ranges between $150 for minor sensor or alignment adjustments and $850 or more for major motor replacements. Most standard mechanical repairs can be handled in a single afternoon. When an automatic gate acts up, the real problem is rarely just an electrical glitch. After years of repairing access control systems in North Texas, we see one pattern repeatedly: fried circuit boards and smoking motors are almost always the final symptom of unaddressed structural drag, such as sinking hinge posts, binding slide tracks, or out-of-balance gate leaves.

Hiring a general handyman or an unspecialized fence installer often leads to guesswork, repeat service calls, and surprise fees. At Ironworks Gate Co., we believe in diagnosing the root mechanical issue first. Our technicians arrive in fully equipped service trucks carrying genuine parts for major brands like LiftMaster, DoorKing, Viking, and FAAC. We back every project with flat, upfront written pricing, zero hidden trip fees, and a 90-Day Done Right Promise.

Automatic Gate Repair Cost Overview

Most residential and commercial gate repairs fall between $150 and $850 nationwide. Simple sensor alignments or minor wiring repairs start on the lower end, around $120 to $250. Replacing an entire gate operator, rebuilding an internal gearbox, or resetting heavy steel posts can range from $450 to upwards of $1,300 depending on the size and weight of your gate.

What to Expect During a Professional Service Visit

A proper repair follows three basic stages:

1. Physical Load and Alignment Check: Disengaging the motor to test the gate by hand, inspecting hinge plumb, roller friction, and track level before touching any electrical parts.
2. Upfront Written Estimate: Giving you a clear, itemized price so you know the exact cost before work begins.
3. On-Site Resolution: Completing the physical and electrical repairs from a fully stocked truck so your property stays secure without multiple trip delays.

Electric Gate Repair Cost Breakdown: Parts vs. Labor

Understanding an electric gate repair cost breakdown helps you see where your money goes. Technician labor for specialized gate automation typically runs between $90 and $160 per hour, reflecting the electrical and welding expertise required. However, paying by the hour can sometimes leave property owners vulnerable to slow work or trial-and-error repairs. We prefer fixed, flat-rate pricing based on the job requirements.

Service Feature	Handyman Service	Standard Fence Company	Ironworks Gate Co.
Upfront Written Pricing	Rarely	Sometimes	Always
Access Control Diagnostics	Limited	Basic	Advanced / Factory Certified
Surprise Diagnostic Fees	Common	Occasional	Never
Fully Stocked Service Trucks	No	Partial	Yes (OEM Parts On Hand)

Key Factors That Influence Your Total Repair Bill

Four main elements determine where your invoice will land:

• Gate Type and Size: Heavy dual-swing wrought iron gates and long commercial cantilever slide gates put far more demand on hardware than a light residential single swing gate. Swing gate repair cost often centers on hinges and linear arms, while sliding gate repair cost usually involves ground tracks, v-groove wheels, and drive chains.
• Component Quality: Using commercial-grade replacement parts from established manufacturers costs more upfront but prevents the premature failures common with low-grade aftermarket gear.
• Power Supply and Safety Accessories: Trenching new power lines, repairing solar charging systems, or adding modern safety photo-eyes will affect the final price.
• Underlying Foundation Issues: If a gate post has shifted because of shifting clay soil, simple motor adjustments will not fix the issue. The post must be braced or reset in concrete.

The Hidden Mechanical Multiplier: Structural Drag vs. Electrical Failure

The single biggest factor driving up automatic gate repair costs over time is structural drag. As experienced technicians at Ironworks Gate Co. observe, when an electric gate stops opening, most property owners assume the motor burned out or the control board gave up. In more than half of all service calls, the electrical breakdown was actually caused by extreme physical resistance.

When heavy iron gates sag, hinges run dry of grease, or slide tracks collect gravel, the opener has to pull twice or three times its rated weight capacity. The motor draws excessive electrical current to force the gate open. Eventually, the capacitor blows, the internal plastic gears strip, or the logic board overheats and fries.

The One-Hand Diagnostic Test

If you want to check your gate for structural drag, try this simple test:

1. Disengage the motor: Pull the emergency release pin or twist the clutch key to disconnect the drive arm or chain.
2. Move the gate manually: Push and pull the gate through its entire travel path using only one hand.
3. Feel for sticking points: The gate should glide smoothly with consistent, light effort. If it scrapes the ground, jerks on the track, or requires full body weight to move, you have structural drag.

Replacing a burned-out motor without correcting this physical drag guarantees that your new motor will fail just as quickly, doubling your repair expenses in the long run.

Automatic Gate Components: Symptoms, Repair vs. Replacement

Deciding whether to repair an existing part or replace it entirely comes down to component age, safety standards, and physical wear.

Component	Common Failure Signs	Repair vs. Replace Guidelines
Motor / Operator	Humming noise, clicking without movement, burning smell	Repair circuit boards or capacitors on units under 8-10 years old; replace if internal gearboxes are cracked or parts are obsolete.
Hinges and Rollers	Squealing, grinding, jerky gate travel	Grease or realign surface hinges; replace seized ball-bearing barrel hinges or flat-spotted slide wheels.
Safety Sensors	Gate opens fine but refuses to close; phantom reversals	Clean lenses and realign; replace obsolete photo-eyes that do not meet modern UL 325 monitoring standards.
Access Controls / Keypads	Unresponsive buttons, moisture behind glass, dead display	Replace internal backup batteries and clear corrosion; replace keypads exposed to prolonged water damage.

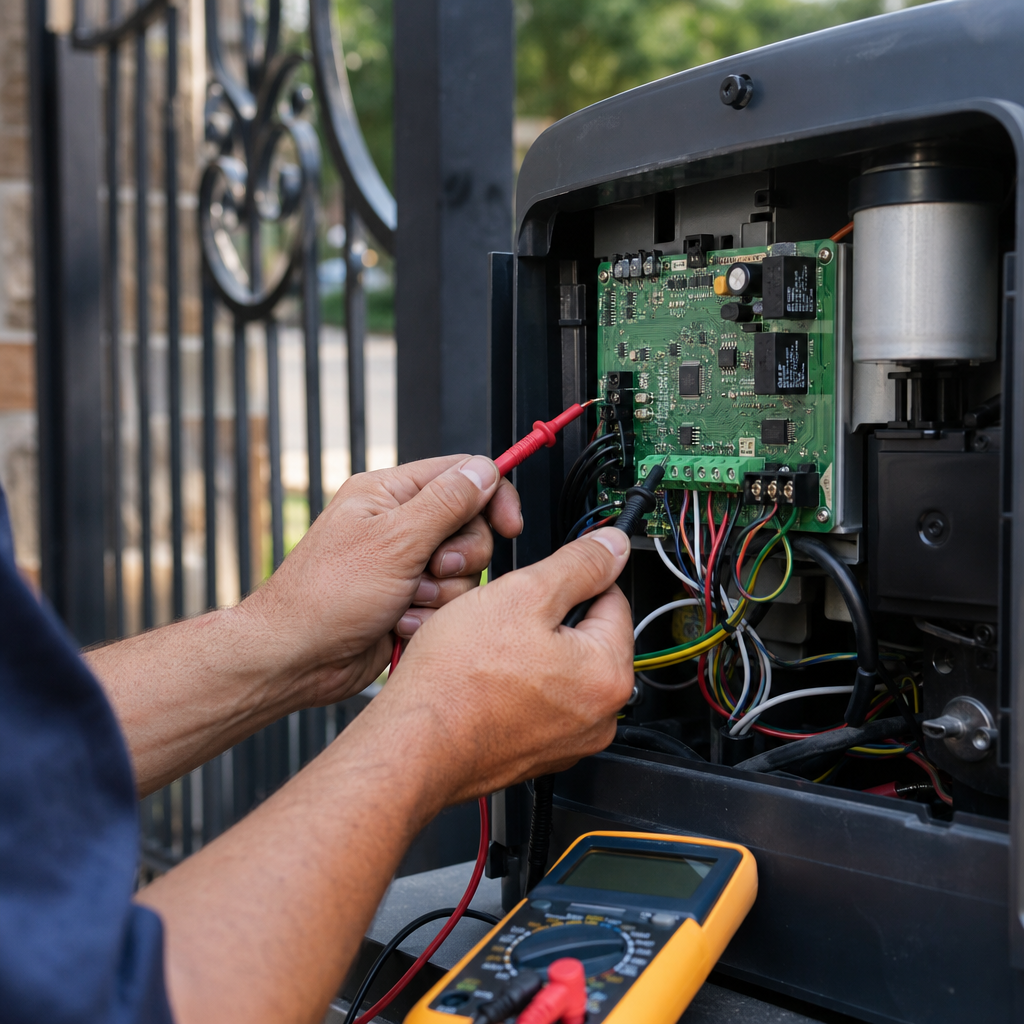

Gate Motor and Operator Units

An automatic gate opener repair cost typically ranges between $200 and $450 for board replacements, wiring repairs, and limit switch recalibration. If the operator is older than 10 to 12 years, sourcing replacement parts can be difficult. Full gate motor replacement cost generally runs from $750 to $1,800 depending on motor horsepower, solar integration, and continuous duty ratings. Replacing an outdated unit also ensures your system meets current UL 325 safety standards for monitored entrapment protection.

Hinges, Tracks, Rollers, and Chains

Replacing worn hardware before it ruins your motor is one of the easiest ways to keep long-term costs down. Replacing a pair of heavy-duty ball-bearing hinges or heavy steel v-groove wheels typically costs between $180 and $380, including labor. If ground shifting has warped your concrete slide track, cutting out and resetting that section will prevent high-amp motor strain.

Sensory and Access Control Systems

Gate sensor repair cost usually sits between $120 and $280. Safety photo-eyes face constant weather exposure, insect intrusion, and accidental bumps from vehicles or lawn care equipment. In many cases, fixing a gate that will not close requires nothing more than precision realignment, cleaning internal optical lenses, or replacing weathered wiring.

Major Automatic Gate Brands We Service

Every brand builds its drive systems, logic boards, and safety inputs differently. Getting an accurate repair without unnecessary part swapping requires familiarity with specific manufacturer fault codes and wiring schematics. We regularly service:

• LiftMaster: Known for reliable residential and commercial swing and slide operators, myQ connectivity, and advanced safety loops.
• DoorKing (DKS): Heavy-duty commercial operators and secure telephone entry systems built for high-traffic facilities, commercial lots, and gated communities.
• Viking Access Systems: Advanced, high-efficiency DC operators popular for both residential properties and commercial properties.
• FAAC and Nice Apollo: Reliable hydraulic and electromechanical systems ideal for heavy ornamental wrought iron gates and solar setups.

Frequently Asked Questions About Automatic Gate Repair

How much does it cost to repair an automatic gate opener?

Repairing an automatic gate opener usually costs between $200 and $450. Minor repairs like replacing a capacitor, resetting travel limits, or wiring a new receiver are fast and affordable. If the main circuit board is fried or the drive gears are completely stripped, a full opener replacement generally ranges from $750 to $1,800 depending on the model and weight capacity.

What are the most common reasons an electric driveway gate stops working?

The top culprits are physical structural drag (binding hinges or uneven tracks), misaligned or dirty safety photo-eyes, dead remote or backup batteries, insect nesting inside control boxes, and post-shift caused by ground settling. If the safety sensors detect any obstacle or lose optical alignment, the gate will stay open for safety.

Is it cheaper to repair or replace a damaged automatic gate?

If your gate frame is structurally straight, your hinges are sound, and the operator is under eight to ten years old, repairing the specific failing component is almost always the most economical choice. However, if the gate frame is badly twisted from a vehicle strike, or the operator is an obsolete model lacking modern safety reversing features, full replacement is a safer, more cost-effective long-term investment.

How much do gate technicians typically charge per hour for labor?

Most specialized access control technicians charge between $90 and $160 per hour. Because complex systems require knowledge of low-voltage electrical work, mechanical drive systems, and structural alignment, specialized gate contractors deliver much more reliable results than general maintenance handymen. Look for contractors who offer flat, upfront estimates to avoid open-ended hourly fees.

How often should an electric gate be serviced to avoid expensive repairs?

Residential gates should receive professional maintenance at least once a year. High-traffic commercial gates should be inspected every six months or quarterly. According to Ironworks Gate Co., routine maintenance includes greasing bearing hinges, checking track balance, tightening drive chains, testing safety reversing sensors, and clearing pests from the electronics enclosure.

How much does automatic gate repair cost in Grapevine and North Texas?

Residential gate repair cost in Grapevine, Colleyville, and Southlake typically averages between $150 and $600 for standard mechanical and electrical repairs. Because our local clay soil expands and contracts dramatically between wet seasons and intense summer heat, post realignment and hinge adjustments are frequent requirements alongside routine opener repairs.

Schedule a Professional Gate Diagnostic

Do not let a noisy, struggling gate turn into a complete motor burnout. Contact Ironworks Gate Co. today to schedule an on-site assessment. Our technicians will inspect your entire system, pinpoint any hidden structural drag, and give you a transparent, upfront written quote before any work begins.

Frequently Asked Questions

What is included in a professional on-site automatic gate diagnostic?

A comprehensive on-site assessment includes disengaging the operator to inspect hinge plumb, track friction, and structural drag before diagnosing electrical controls or circuit boards. Ironworks Gate Co. provides this full mechanical evaluation paired with an upfront written quote, ensuring you see exact, flat-rate pricing before any work begins.

How quickly can automatic driveway gate repairs typically be completed?

Most routine mechanical and electrical repairs can be resolved in a single afternoon visit. Ironworks Gate Co. dispatches fully stocked service vehicles equipped with genuine OEM parts for major brands like LiftMaster and DoorKing to eliminate supply delays and restore perimeter security immediately.

What warranty protection should come with professional gate repairs?

Reputable gate automation specialists should back both replacement components and technical labor with written guarantees. Ironworks Gate Co. provides a 90-Day Done Right Promise alongside commercial-grade manufacturer parts warranties, protecting property owners from recurring motor burnout and repeat service expenses.
