Electric Gate Motor Repair: Fast Same-Day Fixes in DFW

When an automated gate refuses to open, it immediately creates a security risk and traps vehicles behind a dead barrier. Ironworks Gate Co. provides same-day electric gate motor repair across Grapevine and the greater Dallas-Fort Worth area. Whether you are dealing with a residential swing gate in Southlake or a high-traffic commercial slide operator along Highway 114, our technicians identify the root cause quickly and carry the replacement parts needed to get your gate moving again in a single visit.

General handymen and standard fence installers often lack the specific electrical testing equipment and access control certifications needed to troubleshoot modern gate operators safely. Our team focuses strictly on gate automation, carrying OEM hardware for major brands including LiftMaster, DoorKing, Viking, FAAC, and BFT. We provide clear, written quotes before starting any work, eliminating hidden fees or surprise labor costs.

Electric Gate Motor Repair: Immediate Diagnosis and Fast Solutions

Quick Summary: Electric gate motor repair addresses failures caused by electrical spikes, worn internal gears, dead starting capacitors, or physical gate drag. Minor component repairs take one to two hours, while complete operator replacements take three to five hours. A dependable diagnosis starts by testing incoming line voltage, checking safety loop circuits, and measuring physical gate drag.

Fixing a stalled operator requires determining whether the breakdown is an electrical issue, a safety sensor lockout, or physical wear in the mechanical drive train. Ironworks Gate Co. technicians follow a structured diagnostic routine to isolate the real issue before replacing expensive components:

1. Disengage the Manual Release: Disconnect the drive arm or chain release pin to test the gate leaf independently from the gearbox.
2. Check Mechanical Resistance: Move the gate manually across its entire path. If the gate binds, scrapes, or requires heavy effort to push, the problem is structural alignment rather than a dead motor.
3. Inspect Safety Devices: Clean dust, insect nests, and spiderwebs from photo-eye lenses. Test whether inductive ground safety loops are locked in a continuous detection state.
4. Verify Power and Control Board Codes: Check the primary breaker, test line voltage, and read the diagnostic LED indicators or error codes on the main logic board.

Technical guidance from the International Door Association (IDA) shows that mechanical binding causes far more automated gate failures than standalone electrical defects. Replacing a motor without fixing structural friction usually leads to another breakdown within a few months. For property owners evaluating the total electric gate repair cost breakdown, proper diagnosis on day one prevents recurring service bills.

Key Diagnostic Facts

• Turnaround Time: Standard electrical repairs and component swaps take one to two hours. Full operator replacements run three to five hours.
• Cost Transparency: The overall repair cost depends on whether the fix involves a simple starting capacitor, an electronic logic board, or a stripped internal gearbox.
• OEM Compatibility: Using factory-matched parts protects manufacturer warranties and prevents accelerated wear on the drive assembly.

What Does Electric Gate Motor Repair Cost?

Electric gate motor repair generally costs between $150 and $450 for standard electrical fixes, while a full operator replacement ranges from $1,200 to $3,200 depending on the motor horsepower, physical gate weight, and duty cycle requirements.

Gate Repair Pricing Breakdown

Sluggish gate operation is often misdiagnosed as an underpowered motor when the real problem is hinge binding or track settlement. Industry cost data places the average driveway gate repair between $250 and $850, though North Texas soil movement plays a heavy role in local repair scopes.

Service Type	Average Cost	Scope of Work
Diagnostic Assessment	$0 – $95	On-site physical inspection, electrical load testing, and written estimate
Hinge, Weld & Track Alignment	$175 – $350	Re-aligning posts, leveling tracks, and clearing physical drag
Capacitor / Board Repair	$150 – $425	Replacing blown run capacitors, relays, or surge-damaged control boards
Automatic Gate Opener Repair	$350 – $850	Gearbox overhaul, limit switch replacement, or drive-chain service
Full Motor Replacement	$1,200 – $3,200	New commercial or residential operator installed with battery backup

Our field records across Tarrant and Denton counties show that most reported “dead” operators are actually healthy motors that shut down because physical ground movement forced the system over its safe amperage limits.

Key Factors Driving Motor Repair vs. Replacement

Several details determine whether a repair or complete replacement makes the most sense:

1. Operator Capacity: Continuous-duty commercial slide operators designed for high-cycle facilities cost more to replace than standard residential swing arms.
2. Accessory Integration: Solar setups, secondary battery backups, and multi-tenant telephone entry systems require extra configuration and load balance testing.
3. Risk of Delayed Repairs: Leaving a struggling motor in service forces the electronic control board to absorb repeated electrical spikes, turning a simple mechanical fix into a major electrical failure.

Why Electric Gate Motors Burn Out: The Hidden Impact of North Texas Soil

The expansive clay soil common throughout North Texas expands during wet periods and shrinks during summer droughts. This movement shifts gate post footings and knocks hinges and ground tracks out of level. The resulting physical drag forces the electric motor to draw excessive current until the internal windings overheat, the starting capacitor blows, or the thermal overload switch shuts the system down.

How Shifting Clay Overloads Gate Operators

Treating a stalled motor strictly as an electrical failure is the primary reason many property owners deal with repeat breakdowns. Research from the Texas A&M AgriLife Extension Service highlights how local clay soils expand and contract significantly through seasonal moisture changes. When a gate post tilts even a fraction of an inch, heavy iron leaves drag against the ground or bind at the pivot point.

If a technician simply replaces a blown circuit board without checking post alignment, the motor will continue fighting the physical drag until it fails again. For homeowners checking how much to fix automatic gate systems in Grapevine, pairing mechanical alignment with electrical repair is the only way to ensure lasting performance.

Structural Drag vs. Electrical Failure

Ironworks Gate Co. technicians use a clear isolation process to determine whether a failure is purely electrical or driven by structural binding:

1. Manual Drag Testing: Disconnect the drive mechanism and manually move the gate. Scraping, resistance, or squealing points to physical alignment issues rather than internal motor failure.
2. Inline Amperage Draw: Measure electrical current draw while the operator runs under load. A motor rated for 4.5 amps that draws 8 or 9 amps is working against severe mechanical friction.
3. Component Heat Checks: Inspect starting capacitors and motor windings for heat discoloration, which confirms prolonged duty cycles under excessive mechanical strain.

Key Automatic Gate Opener Components: Symptoms and Repair Options

Accurate troubleshooting means separating drive train friction from electrical board faults. While a humming sound usually points to a weak capacitor or stripped gears, an operator that shows no signs of life often indicates a blown transformer, a tripped surge protector, or a severed power feed.

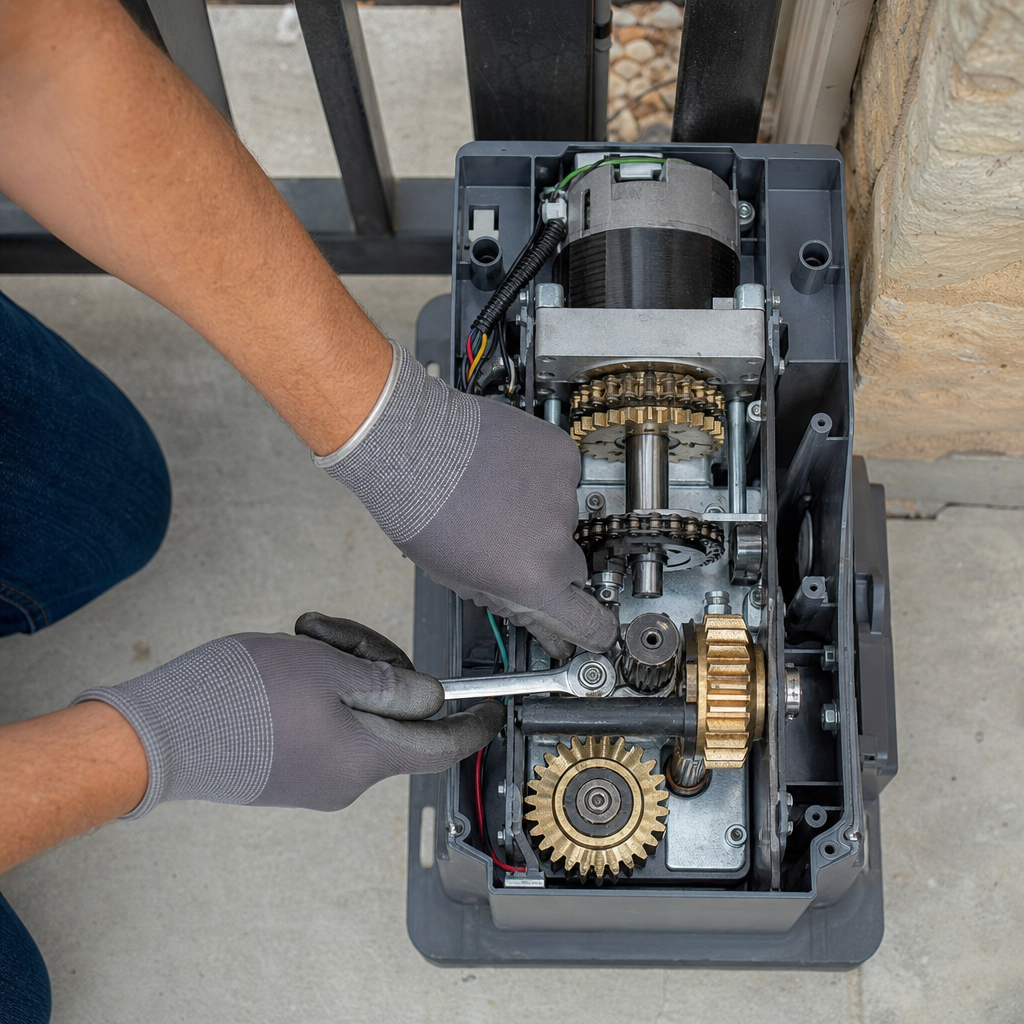

Gate Operator and Internal Gearbox

A motor that hums without turning the output shaft usually has a failed start capacitor or a worn bronze drive gear. When shifting soil causes gate hinges to bind, internal gears wear down quickly under the elevated mechanical load. If the unit does not hum or light up at all, the main board has likely taken a high-voltage surge or the low-voltage step-down transformer has burned out.

Chain, Belt, and Roller Assemblies

When a gate stops halfway through its cycle, physical travel resistance or sensor trips are the most common culprits. Sagging roller chains bunch up around the drive sprocket, while cracked V-groove wheels drag hard on ground tracks. Worn limit switch collars can also slip along the shaft, causing the board to think the gate reached its end position early.

Photo-Eye Safety Sensors and Control Boards

Modern safety regulations require active monitoring on entrapment protection devices. Low morning or evening sunlight, insect nests inside sensor housings, or shifted mounting posts can misalign infrared beams. When this happens, the logic board locks out to prevent property damage or injury. Underground loop detectors can also fail if pavement cracking severs the insulated wire loop.

Decision Factor	Component Repair	Gearbox Rebuild	Full Unit Replacement
Unit Age	Under 7 years	7 to 12 years	12+ years
Best For	Capacitors, photo-eyes, limit switches	Stripped internal gears, drive shafts	Obsolete boards, cracked motor housings
Mechanical Drag Risk	Low	Moderate	High (requires full realignment)
Cost Impact	Lowest upfront cost	Mid-range investment	Highest initial cost, longest lifespan

Top Electric Gate Opener Brands We Service

Proper repair work requires direct access to original manufacturer parts and diagnostic manuals. Ironworks Gate Co. technicians service all major commercial and residential gate automation brands across DFW:

• LiftMaster: Logic board replacements, drive-arm rebuilds, and diagnostic calibrations for CSW24UL swing and CSL24UL commercial slide systems.
• DoorKing (DKS): High-voltage circuit troubleshooting, industrial gearbox overhauls, and telephone access integration for commercial properties and gated communities.
• Viking Access & Nice Apollo: Solar actuator adjustments, micro-controller diagnostics, and linear arm rebuilds.
• FAAC & BFT: Hydraulic operator servicing, fluid checks, and underground operator maintenance.

Under current UL 325 safety standards established by the Door & Access Systems Manufacturers Association (DASMA), all secondary safety devices must be monitored continuously by the control board. Our technicians verify that safety sensors, auto-reverse sensitivity, and mechanical limits meet these safety requirements before completing any repair.

Frequently Asked Questions About Electric Gate Motor Repair

How much does it cost to repair an electric gate motor?

Minor electrical repairs like replacing a starting capacitor, wiring harness, or safety photo-eye range between $150 and $450. Rebuilding a mechanical gearbox or replacing a control board ranges from $350 to $850. If the motor is beyond repair or outdated, a full replacement typically costs between $1,200 and $3,200.

Why has my electric gate motor stopped working?

A gate motor can stop working due to a tripped breaker, blown fuses on the control board, misaligned safety sensors, dead remote batteries, or lightning surges. In North Texas, physical hinge binding caused by shifting clay soil is also a major culprit that trips internal thermal switches.

Can an automatic gate motor be repaired or does it need full replacement?

Most operators under ten years old can be repaired by replacing worn individual components such as capacitors, limit switches, drive chains, or circuit boards. Replacement is usually recommended if the operator is more than twelve years old, if replacement parts are obsolete, or if the motor casing and main drive gears are cracked.

How do I troubleshoot an electric gate opener that hums but does not open?

A humming sound indicates the motor is receiving power but cannot turn the drive assembly. Disengage the emergency release pin and test the gate manually to check for physical binding. If the gate swings or slides freely by hand, the humming is caused by a blown run capacitor, a seized gearbox, or stripped drive teeth.

How long does an electric gate motor typically last?

A residential gate operator lasts between 10 and 15 years with regular lubrication and seasonal hinge adjustments. High-traffic commercial gate operators typically last 7 to 10 years due to continuous daily cycling.

Who provides emergency electric gate motor repair near me?

Ironworks Gate Co. provides emergency gate repair services across Grapevine, Southlake, Colleyville, and surrounding North Texas communities. Contact our dispatch team directly to schedule a same-day diagnostic assessment with a factory-trained technician.

Frequently Asked Questions

How do technicians prevent repeated electric gate motor burnout caused by shifting North Texas clay soil?

Technicians at Ironworks Gate Co. resolve soil-related motor strain by realigning shifted posts, leveling ground tracks, and measuring motor amperage draw under load. Correcting physical drag alongside electrical repairs ensures new capacitors and control boards do not burn out from mechanical overload.

Can an electric gate motor damaged by a power surge or lightning strike be repaired on-site?

Yes, high-voltage surges usually damage the surge suppressor, low-voltage transformer, or main logic board while leaving the mechanical motor intact. Ironworks Gate Co. carries factory-matched OEM circuit boards and electrical components to restore surge-damaged operators on the same day.

How do UL 325 safety standards impact an electric gate motor repair?

Current UL 325 safety codes require automated gate operators to actively monitor secondary entrapment protection devices, such as photo-eyes and edge sensors, before allowing the gate to move. Ironworks Gate Co. tests and recalibrates all safety circuits during every repair visit to guarantee full code compliance and reliable auto-reverse functionality.
